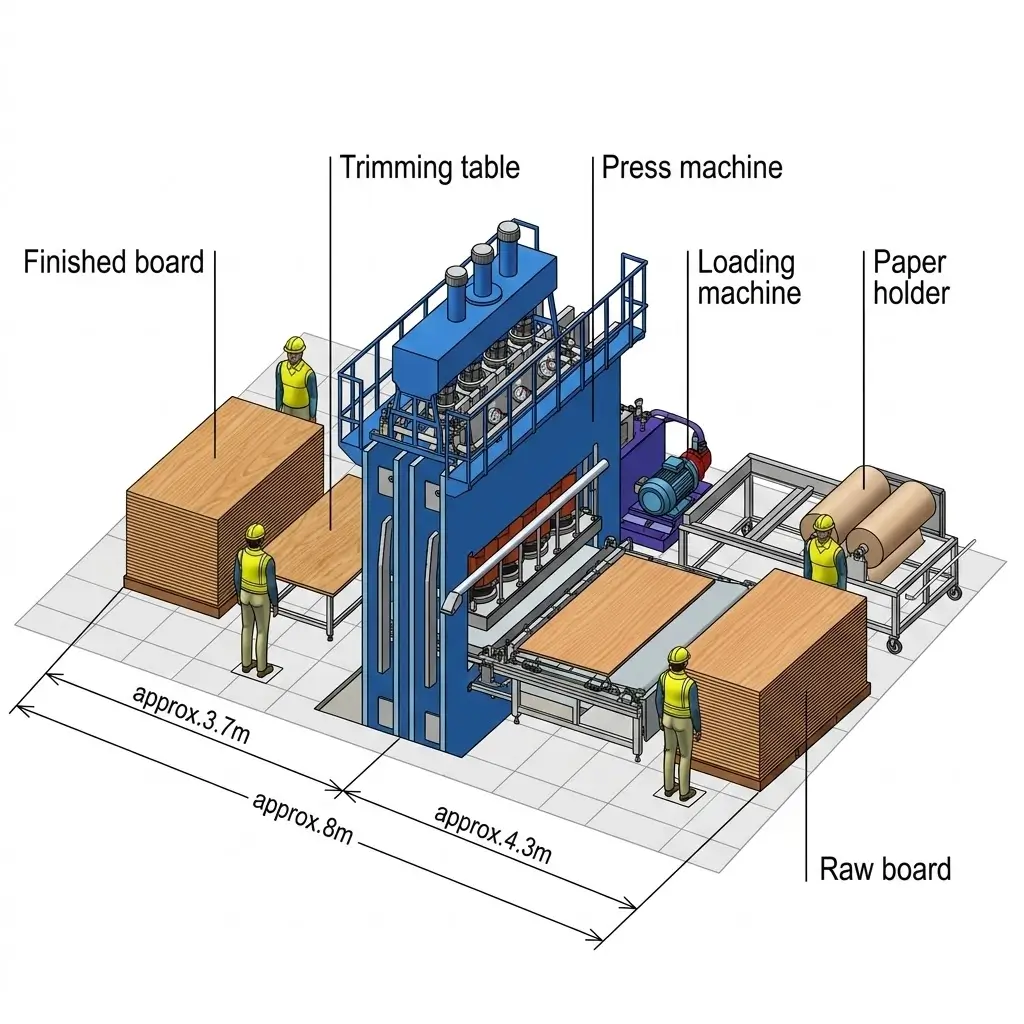

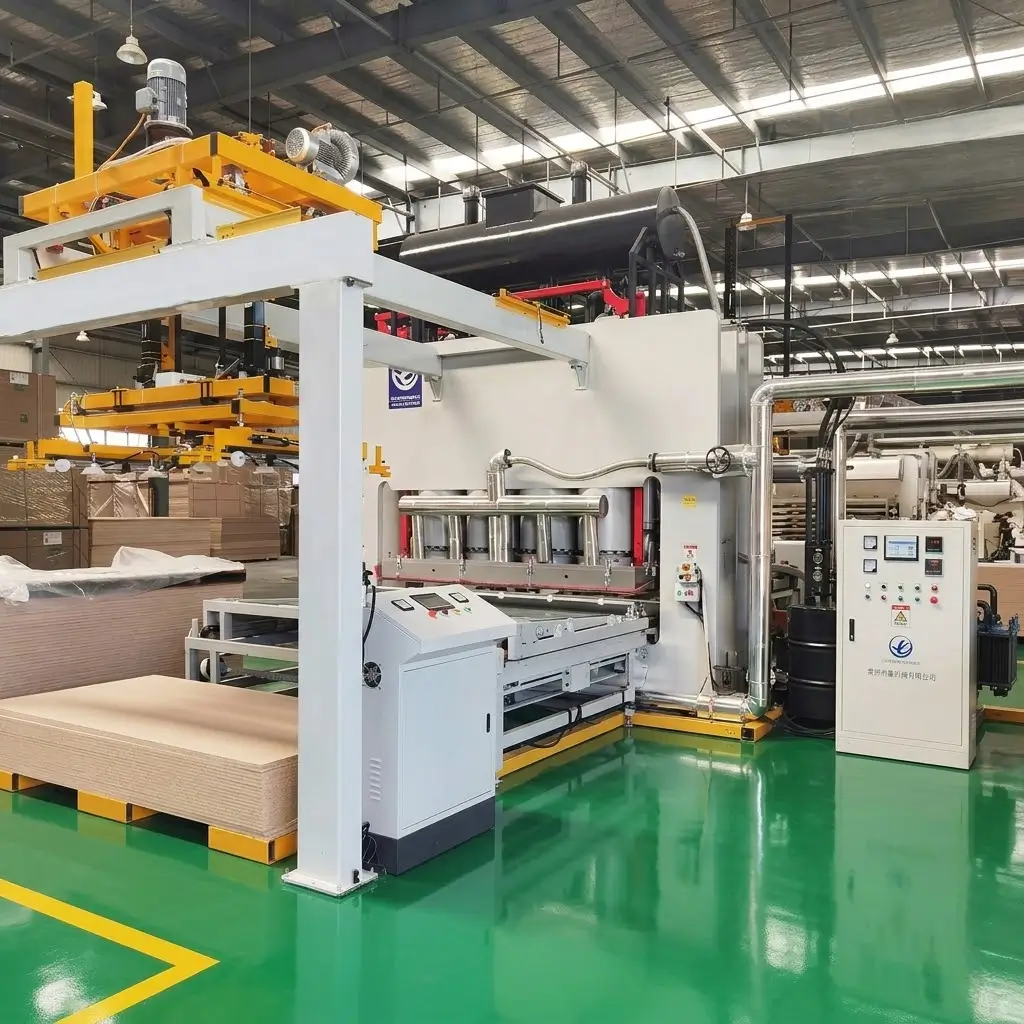

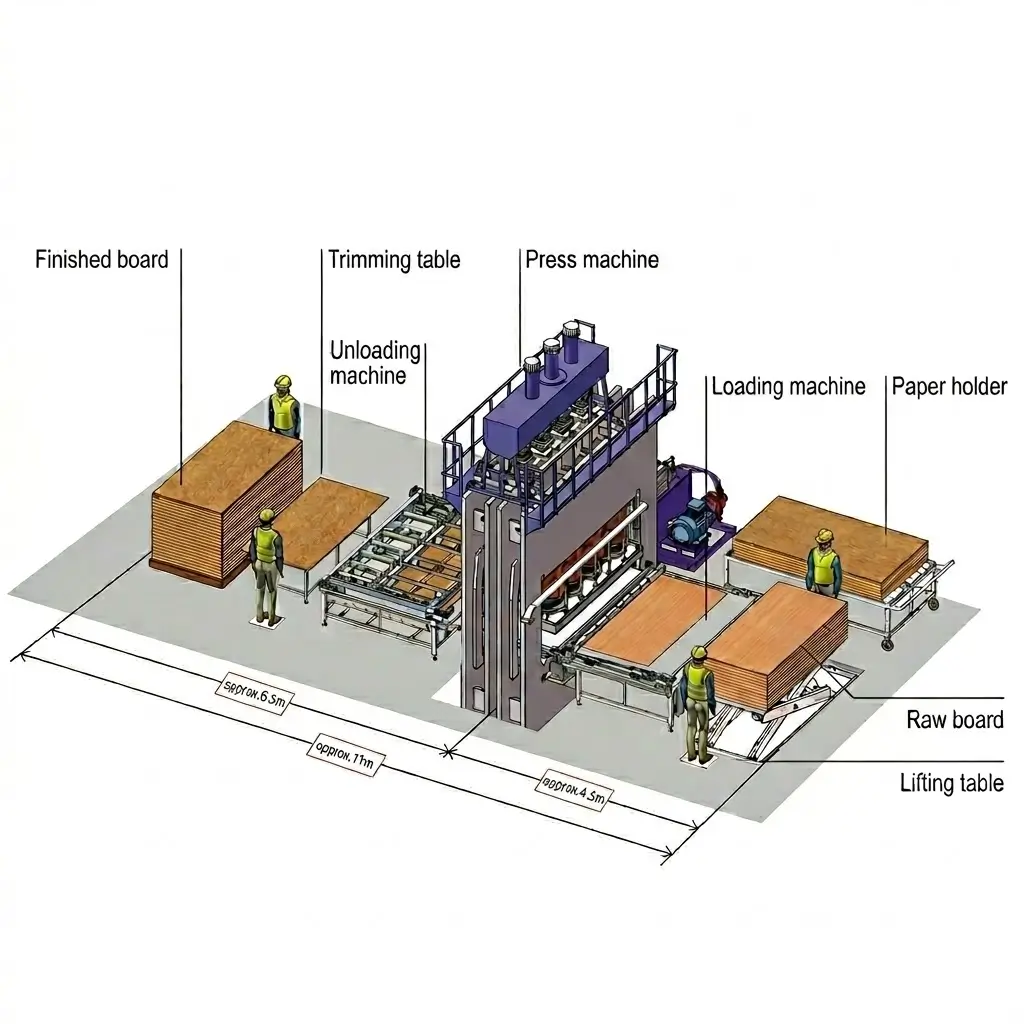

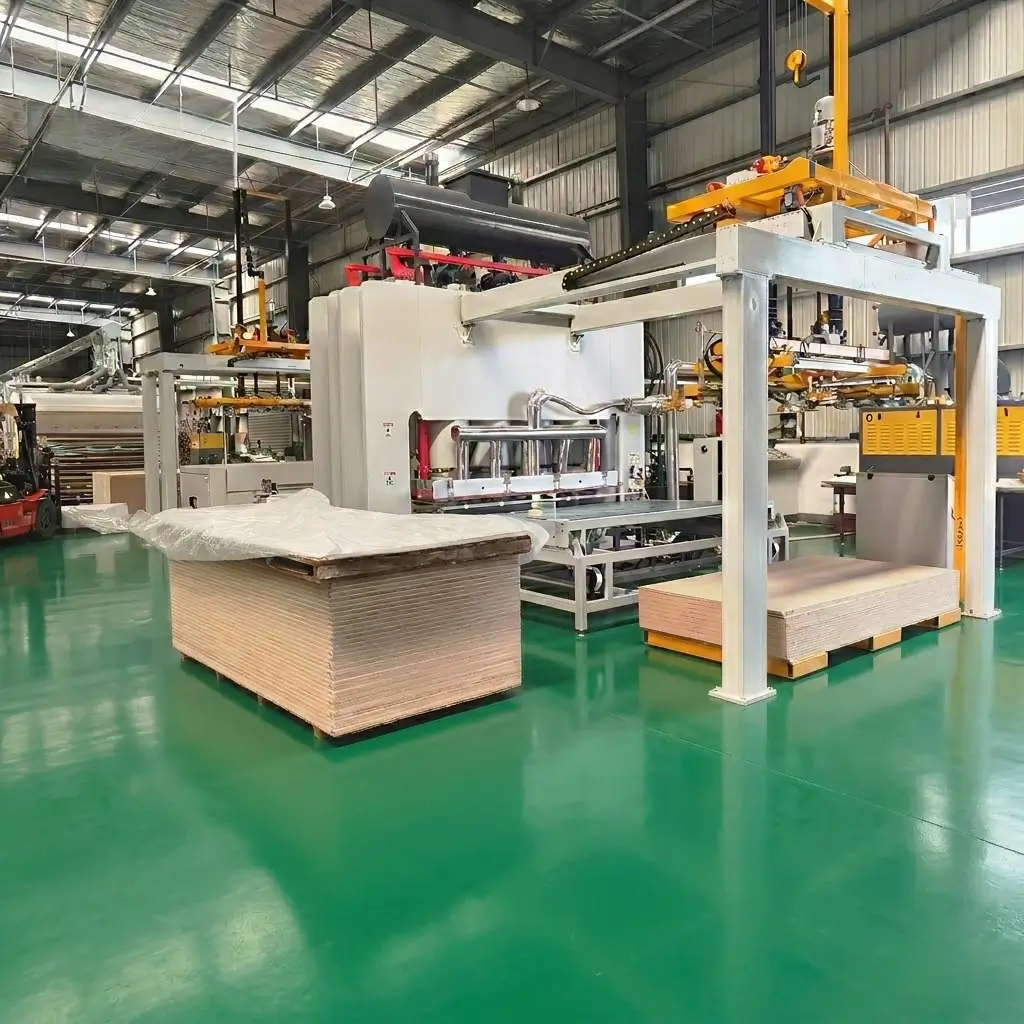

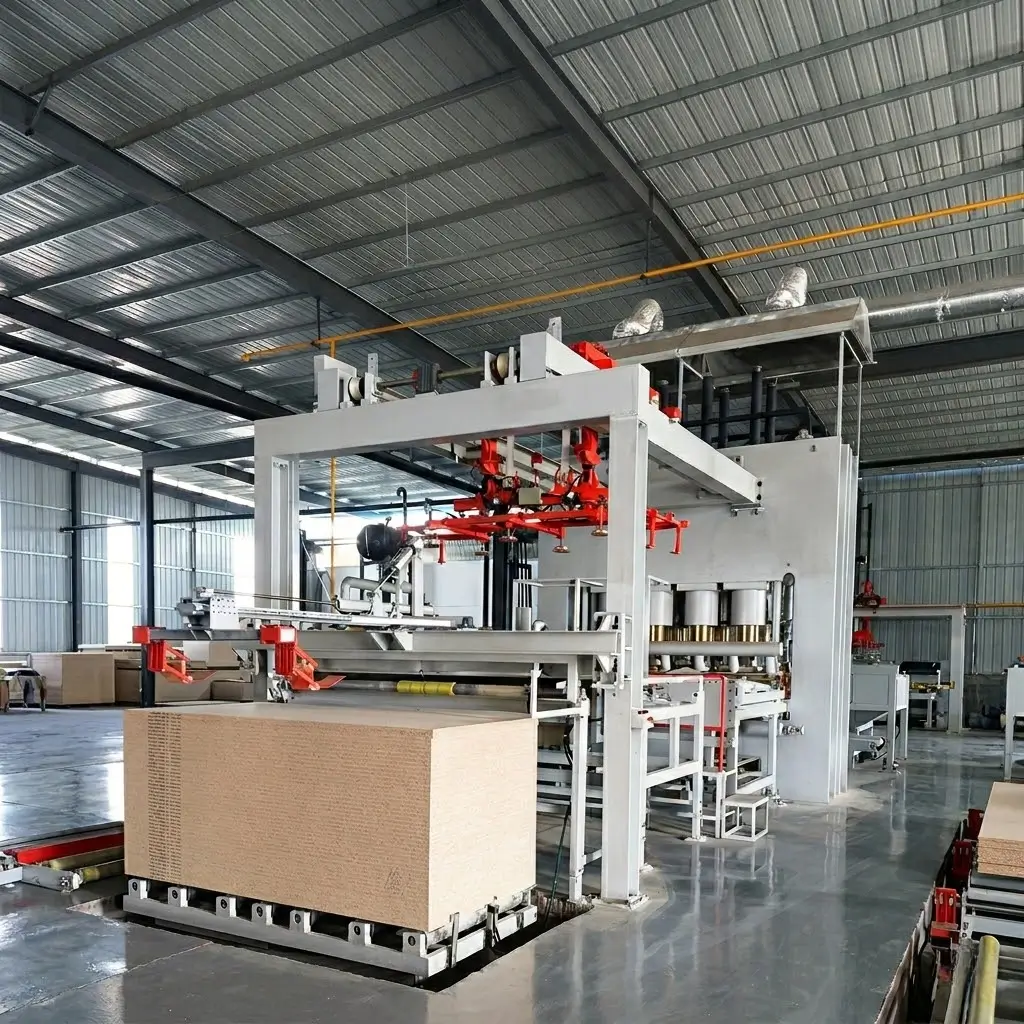

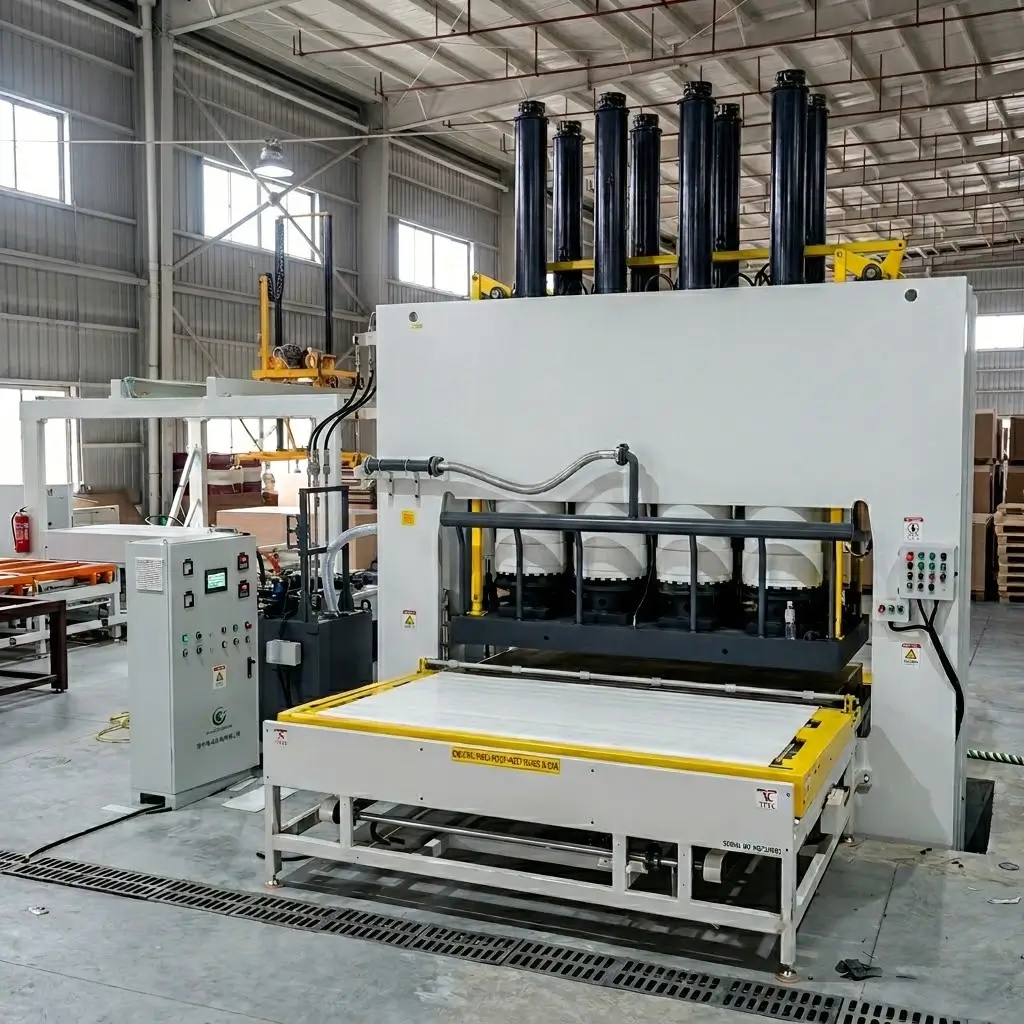

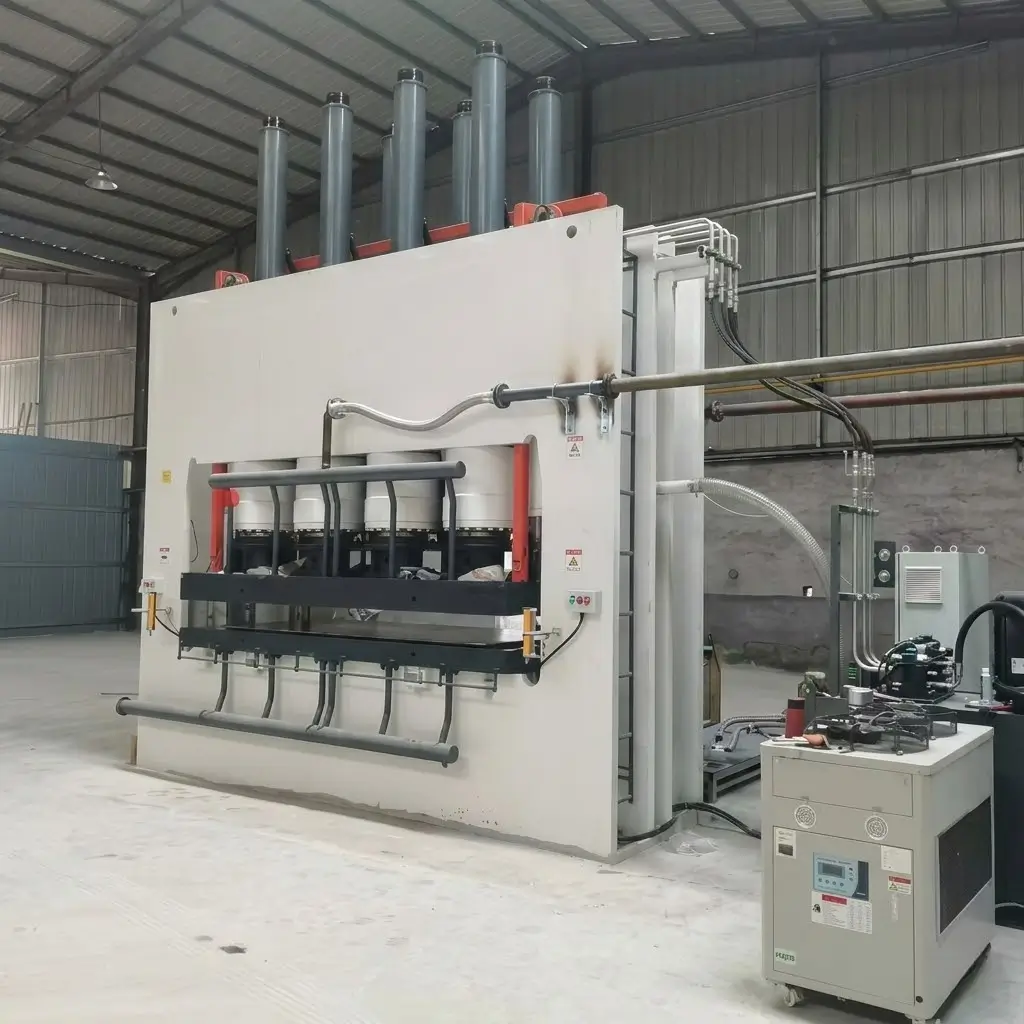

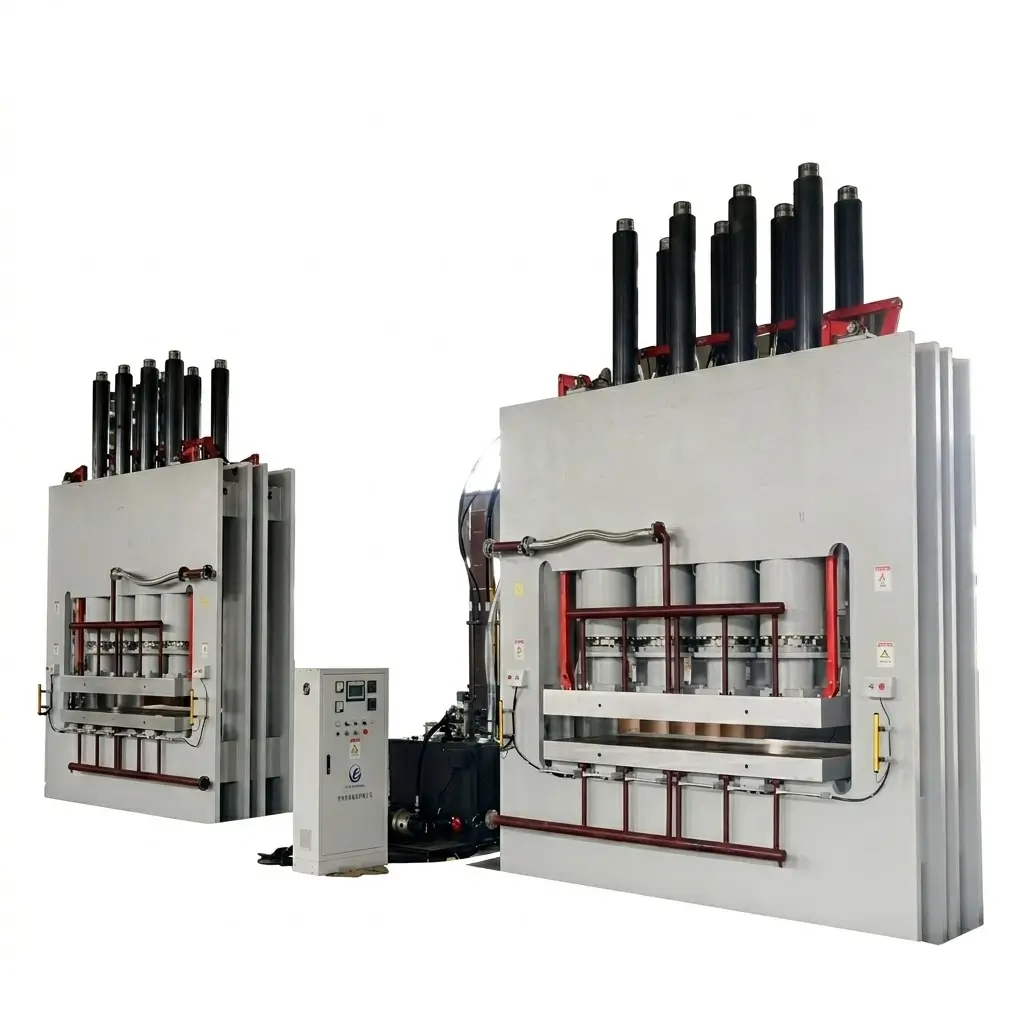

CH Double sides hot press (1600T - 3600T)
Application Scenarios: Primarily used for the rapid lamination of medium-density fiberboard (MDF) and particleboard with melamine paper.
Product Advantages & Description: Outstanding in refined surface treatments, this series not only excels at highly efficient standard flat lamination but also boasts remarkable process compatibility. It is perfectly capable of pressing high-value, complex textures such as V-shaped grooves, hand-grain patterns, and synchronized pores (EIR). With superior synchronization control and pressure uniformity compared to peers, it easily meets the strict aesthetic demands of high-end custom furniture panels and laminate flooring.
Technical parameters
| Model | Total pressure (kN) | Diameter of plunger cylinder (mm) | Num of plunger cylinder (pc) | Width size (ft) |
|---|---|---|---|---|
| CHS-1600 | 1600 | Φ320 | 8 | 4×8, 4×9, 4×10 5×8, 6×8 6×9, 7×9 |
| CHS-2000 | 2000 | Φ360 | 8 | |
| CHS-2400 | 2400 | Φ400 | 8 | |
| CHS-2800 | 2800 | Φ420 | 8 | |
| CHS-3200 | 3200 | Φ450 | 8 | |
| CHS-3600 | 3600 | Φ480 | 8 |

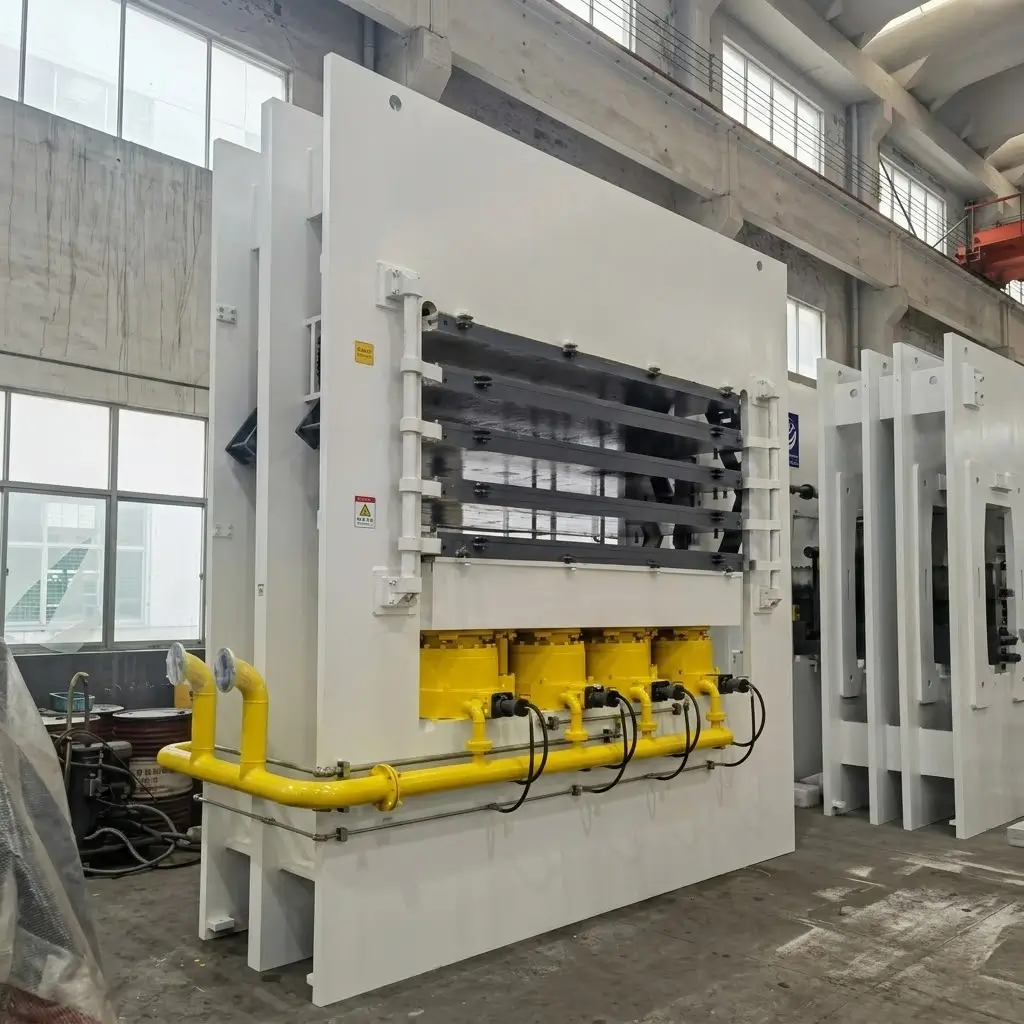

CH multi-layer press
Application Scenarios: Widely applied in the lamination of blockboard, ecological boards, and multi-layer plywood; also used for laminating various decorative materials onto one side of MDF and particleboard, as well as for the drying and shaping of plywood.
Product Advantages & Description: Specifically designed for large-scale, highly efficient batch production. This versatile machine handles a wide range of materials and is exceptionally adept at producing high-gloss melamine finishes. Its advanced multi-layer structure ensures uniform pressure distribution and synchronized heating across all layers (preventing bubbling or over-drying), which significantly boosts the output per cycle while drastically reducing energy consumption and labor costs per board.
Technical parameters
| Model | Total pressure (T) | Diameter of plunger cylinder (mm) | Num of plunger cylinder (pc) | Width size (ft) | Num of layers | Distance between layers (mm) |
|---|---|---|---|---|---|---|
| CHD-150 | 150 | Φ140 | 8 | 4×8 or depends on customers | 3-20 | 80-200 |
| CHD-200 | 200 | Φ160 | 8 | |||
| CHD-300 | 300 | Φ200 | 8 | |||
| CHD-600 | 600 | Φ200 | 8 | 100-150 | ||
| CHD-900 | 900 | Φ250 | 8 | |||
| CHD-1200 | 1200 | Φ280 | 8 | |||
| CHD-1600 | 1600 | Φ320 | 8 |
